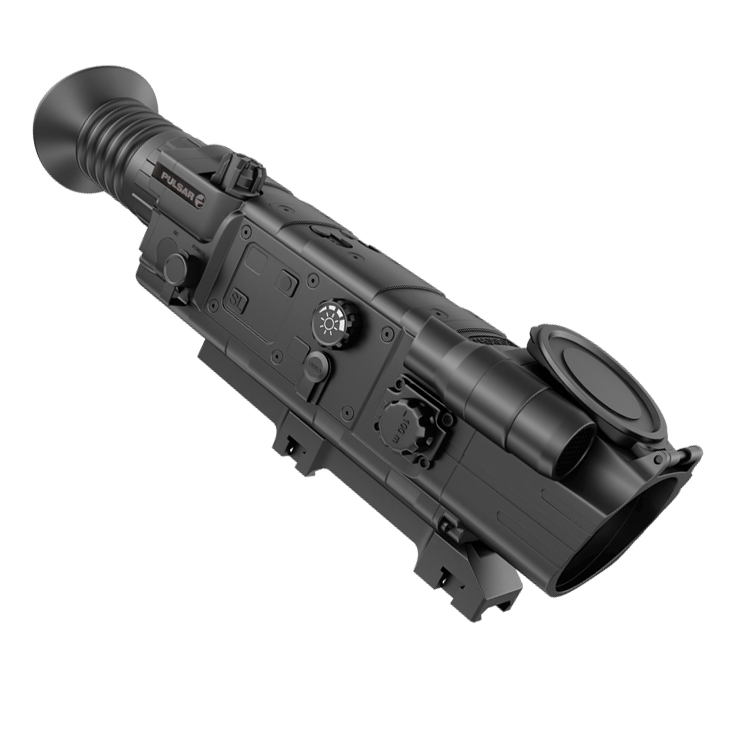

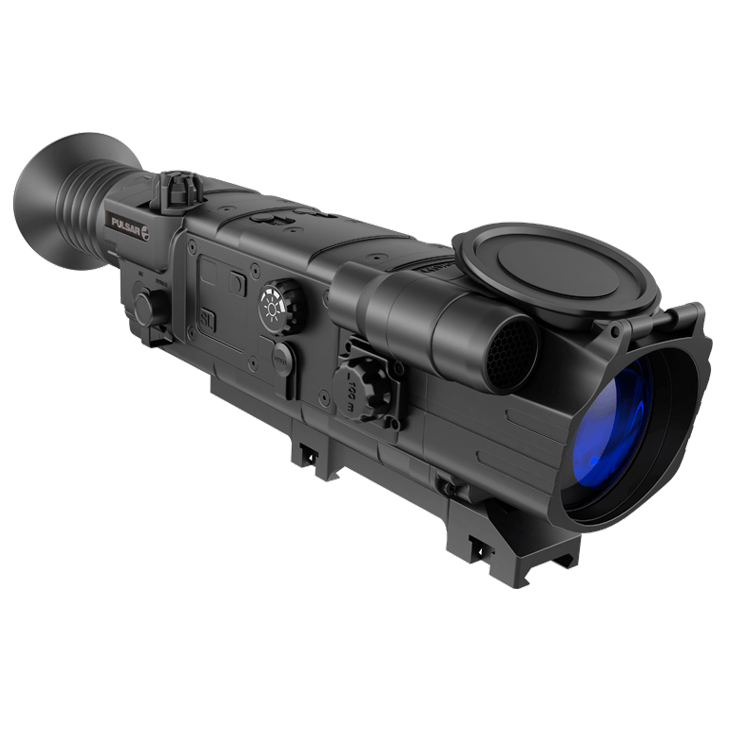

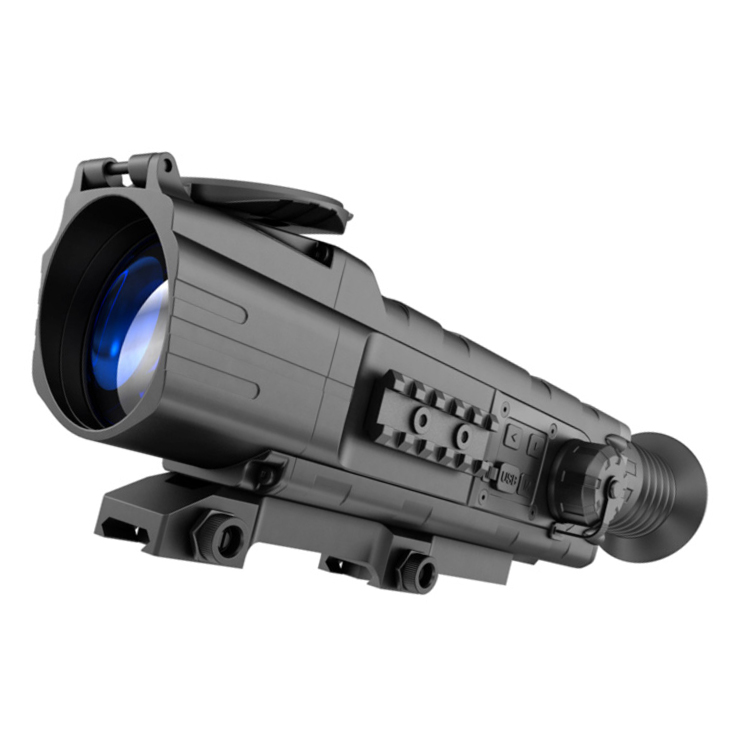

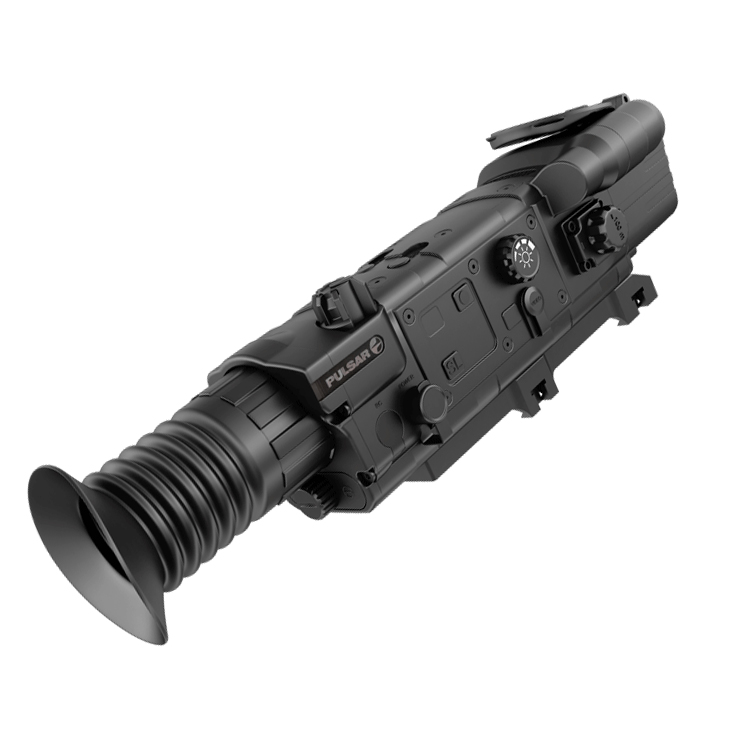

Night vision digital Yukon Pulsar

Specifications

Magnification: 4.5x / 6.75x
Eye relief: 67 mm
Laser IR-illuminator: 915 nm (invisible)
Operating temperature: -25 ... + 50 °?
Download Reticle Catalogue
Download rifle mounts catalogue


What’s in the box:

Digital NV riflescope Digisight N770A | Wireless remote control | Carrying case | Mount (mount may not be included for certain orders) | User manual | Lens cloth | Warranty card


Built-In Invisible IR Illuminator

The Digisight N770/ A/ U/ UA riflescopes are outfitted with built-in IR Laser Illuminator featuring three-step power adjustment. Complying with Class 1 laser safety, the laser IR Illuminator operates in the covert IR range (915 nm), invisible to the unaided human eye.


External Power Supply

Operating time can be significantly extended by using high-capacity external power supply units attached to the Digisight via an external power jack. During continued use in freezing weather, the external power supply units can be stored under the clothes.


Selectable Reticle

A reticle is electronically displayed on the screen and is permanently located in the plane of target image.
The Digisight’s internal memory contains a large number of reticles of various shapes and applications. The central part of the reticles is illuminated, colour can be changed from red to green. The colour of the main part can be switched from black to white.


Memorization of zero-in parameters

Digisight UA/ A series feature an option which allows selection of three variants of zeroing parameters for various types of weapons or for various distances.


Wide Operating Temperature Range

Ability to operate in normal mode at sub-zero temperatures is due to the use of a frost-resistant OLED display featuring fast response and provides crisp image when observing dynamic object.


Image Set-Up Options

Fast set-up options – Contrast and Sumlight™ allow for rapid contrast gain and activation of CCD sensitivity enhancement. Also, there are modes for fine brightness and contrast tuning.


Long Eye Relief

The Digisight riflescopes feature a 67 mm eye relief – one of the best parameters in its class.


Rifle Mount

The mounting holes in the base of the riflescope enable the mount to be installed in one of multiple positions. This choice (depending on the rifle type, anthropometric data of a shooter, etc.) helps the user to ensure the most suitable position on a riflescope.


Wireless Remote Control

The wireless remote control allows basic operations to be fulfilled without resorting to standard controls.


Video Out

The Digisight riflescopes are equipped with a Video Out jack enabling real time video recording with the use of external recording equipment.


Parameters:

Sensitivity of device Spectral sensitivity of device at a wavelength of 780 nm, mW, not more than     0.00003 (3x10^-5)
Spectral sensitivity of device at a wavelength of 915 nm, mW, not more than     0.00015 (1.5x10^-4)
Electronic components Sensor type     CCD
Camera resolution, pixels     500x582
Display type     OLED
Display Resolution, pix.     VGA 640x480
Video OUT availability     analog
Optical characteristics Magnification, x     4.5 (basic) / 6.75 (zoom)
Lens focus, mm     F50/1.0
Field of View,°, horizontal     5 (on 4.5x) / 3.25 (on 6.8x)
Resolution, lines per mm     more then 55
Minimum focusing distance, m     5.5
Eye Relief, mm     67
Diopter adjustment, dptr.     - 4 … + 4
IR-illuminator Radiation source (diode type)     Laser
IR-illuminator IR Wavelength, nm     915
Power of IR Illuminator, mW     30 ... 45
IR Illuminator’s beam divergence angle, degree     5
Range of observation, m Range of recognition, m     270
Power Supply Power Supply, V     4 ÷ 6.3
Battery type     4xAA
Reticle Windage & Elevation, 1 click (H/V), mm@100m     13 / 13
Click range H/V, mm@100m     1040 / 1300
Physical & operational characteristics Type of mount for attachment of additional accessories     Weaver
Operating Temperature,°C     - 25 … + 50
Remote control     Wireless
Shock resistance on rifled weapon, J     6000
Dimensions, mm     340x95x94
Weight (without batteries), kg     1
